Introduction: Urban Rush, Real Loads, and a Better Question
Define the site, define the risk: a crowded depot at dusk, buses queuing, drivers watching minutes. In this setting, the split EV charger 20 /smart split charger 30 sits between the grid and the road, a quiet hub that must not fail. Data from dense fleets shows peak demand spiking 3–5x during shift turnovers, while average dwell times are falling. So the key question is simple and sharp: how do we scale charging without choking the grid or stranding vehicles?
In Middle Eastern hubs, power electronics face heat, dust, and long duty cycles—real constraints, not theory. We speak of feeder limits, load profiles, and service windows; we also speak of people waiting. A design that balances rectifier modules and keeps cables cool will win (otherwise maintenance becomes the story). Look at the topology, not just the plug. Look at the queue, not just the screen. Let us move from components to capacity, and then to certainty—step by step to the core.
Deeper Layer: Where Traditional DC Designs Break Under Peak Pressure
Where do classic designs fall short?
The bottleneck is not the cable; it is the topology. A monolithic charger stacks power converters in one box and ties output tightly to one pedestal. Under surge, this fixed mapping wastes capacity. A modular, shared architecture—like a high power EV charging station 40—decouples rectifier modules from dispensers. Then a scheduler performs load balancing across ports in real time. That means one idle bay can donate amperes to a busy bay—funny how that works, right?
Legacy units also create service risk. One fan fails, one board overheats, and the whole box goes offline. With split cabinets, you isolate faults, swap a module, and keep uptime high. Edge computing nodes coordinate current sharing over CAN bus or Ethernet, while firmware enforces thermal limits and grid-set demand caps. Look, it’s simpler than you think: share DC capacity, pool cooling, and orchestrate queues. The result is less stranded kilowatts, fewer truck rolls, and more predictable turnarounds—especially when OCPP links fleet data to the scheduler.
Comparative Outlook: New Principles That Turn Queues Into Flow
What’s Next

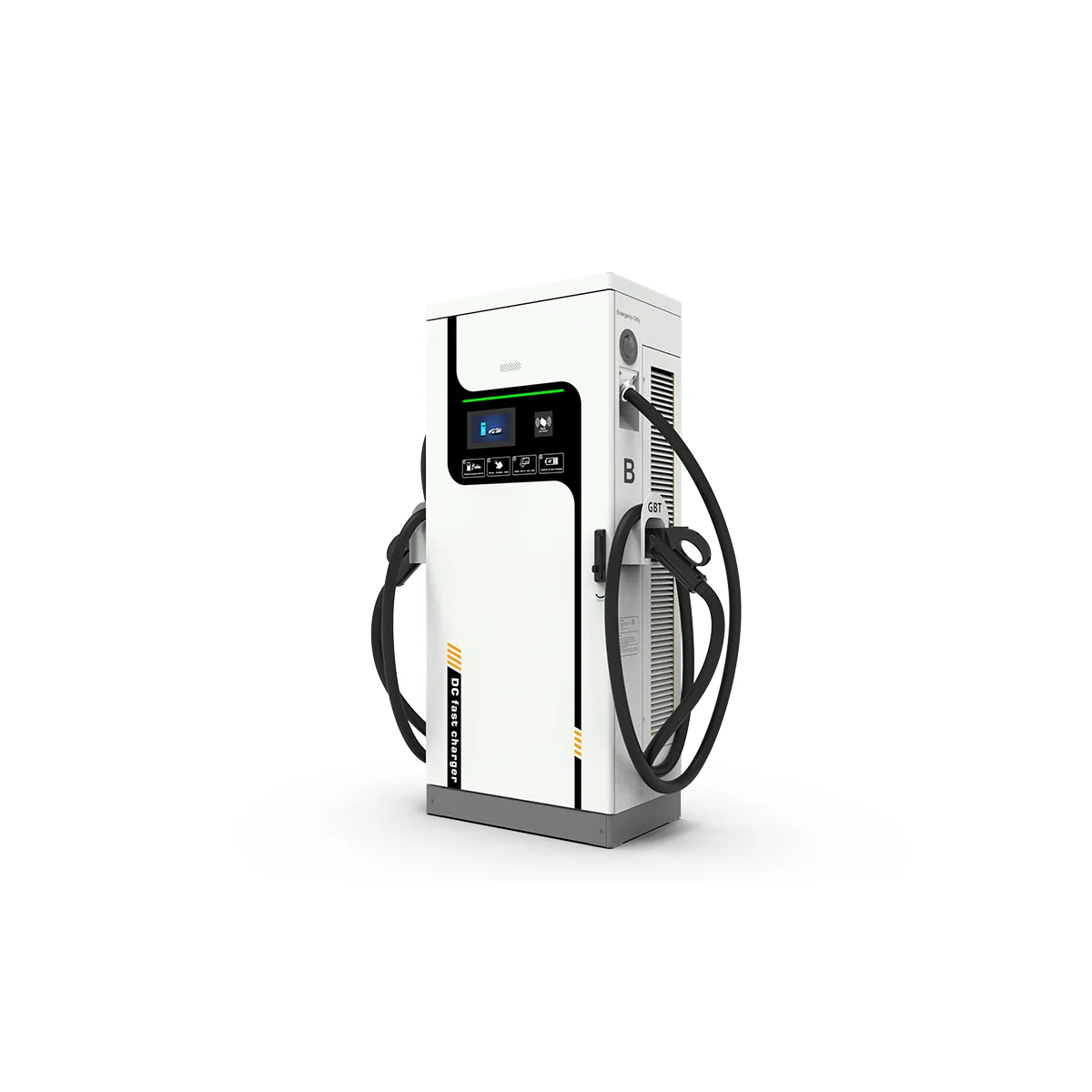

Technical principle first: separate conversion from delivery. Centralized DC cabinets host rectifier modules and liquid cooling, while slim satellites handle connectors and UI. A controller slices power in small steps and routes it based on state of charge, tariff windows, and feeder limits. In practice, a system built like a 350 kw dc fast charger 170 can shift 60–120 kW between ports within seconds, smoothing spikes and keeping sessions fair. Add predictive logic, and the planner pre-allocates power to arrivals mapped by telematics—no guesswork, less idle heat.
Comparatively, the gain is not just speed; it is stability. Split cabinets reduce MTTR because modules are hot-swappable, and they reduce capex per bay because you share the heavy hardware. They also play nicer with the grid. Demand response can trim peaks without killing throughput, since the pool of rectifiers gives you finer granularity. Small note—policy changes rarely arrive on time, yet modular systems adapt with firmware rather than forklifts.
To choose well, use three evaluation metrics. 1) Dynamic allocation efficiency: measure how many kWh are recovered from idle capacity during peaks. 2) Uptime under fault: track mean time to repair by module swap, not whole-unit replacement. 3) Grid friendliness: verify ramp rates, demand caps, and power factor under stress. If these three align, your queues shorten and drivers trust the plan. That is how a busy yard becomes a calm flow, one shared watt at a time. For a reference point in this class, see winline charger.
